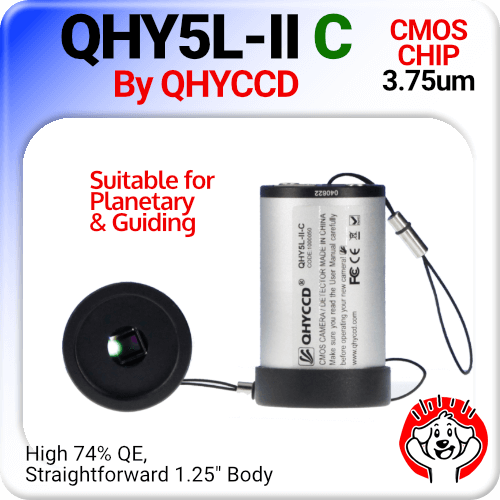

QHY5L-II C – Planetary Imaging & Autoguiding Camera

The QHY5L-II C is a new QHY CMOS camera for planetary imaging applications and can also be used as an auto-guider. Unlike older CMOS technologies the QHY5L-II has no fixed pattern noise, and there’s no random horizontal noise. This camera has high FPS performance: up to 200fps @ 320 x 240. Camera is 1.25″ EP diameter and now has a native C or CS mount as standard. Choose this camera if you require a planetary or guiding capability at a very affordable price.

Planetary Imaging

With a frame rate range of between 30 and 200 frames, the QHY5L-II camera is an instrument best suited for capturing planetary images. Although high frame rates help reduce the amount of atmospheric agitation that influences the image, they also result in short exposure times.

TECHNICAL FEATURES

•  QHY5L-II Color Camera Technical Features:
  • CMOS Sensor: MT9M034 Color.
  • CMOS Size: 1/3-inch.
  • Readout Type: Progressive Scan.
  • Shutter: Electric Rolling Shutter.
  • Exposure Range: 20 microseconds to 10 minutes.
  • Maximum Frame Rate: 1280 x 960 at 30 FPS, 1024 x 768 at 44FPS, 800 x 600 at 75 FPS, 640 x 480 at 106 FPS, 20 x 240 at 200 FPS.
  • Pixel Binning: 1×1.
  • AD Conversion: 8 bit/12 bit (output) , 14 bit (Internal).
  • Pixel Rate: 12/24/48/72 MHz.
  • Mechanical Size: 1.25-percent eyepiece style (31.6 mm).
  • Optical Window: 22 mm AR+AR coating glass.
  • Back Focus: 17.5 mm (when using standard optic window).
  • Power Consumption: 0.64W.
  • Guider Interface: Opto-Isolated 6pin RJ11.
  • Computer Interface: USB 2.0.

What’s in the box

• QHYCCD QHY5L-II-C Color Planetary and Autoguider Camera.
• Location Ring.
• 1.5 m Guide Cable.
• 1.25-inch Extender.
• 1.8 m USB Cable.
• CS Lens Spacer.
• QHYCCD 2 Year Warranty.
